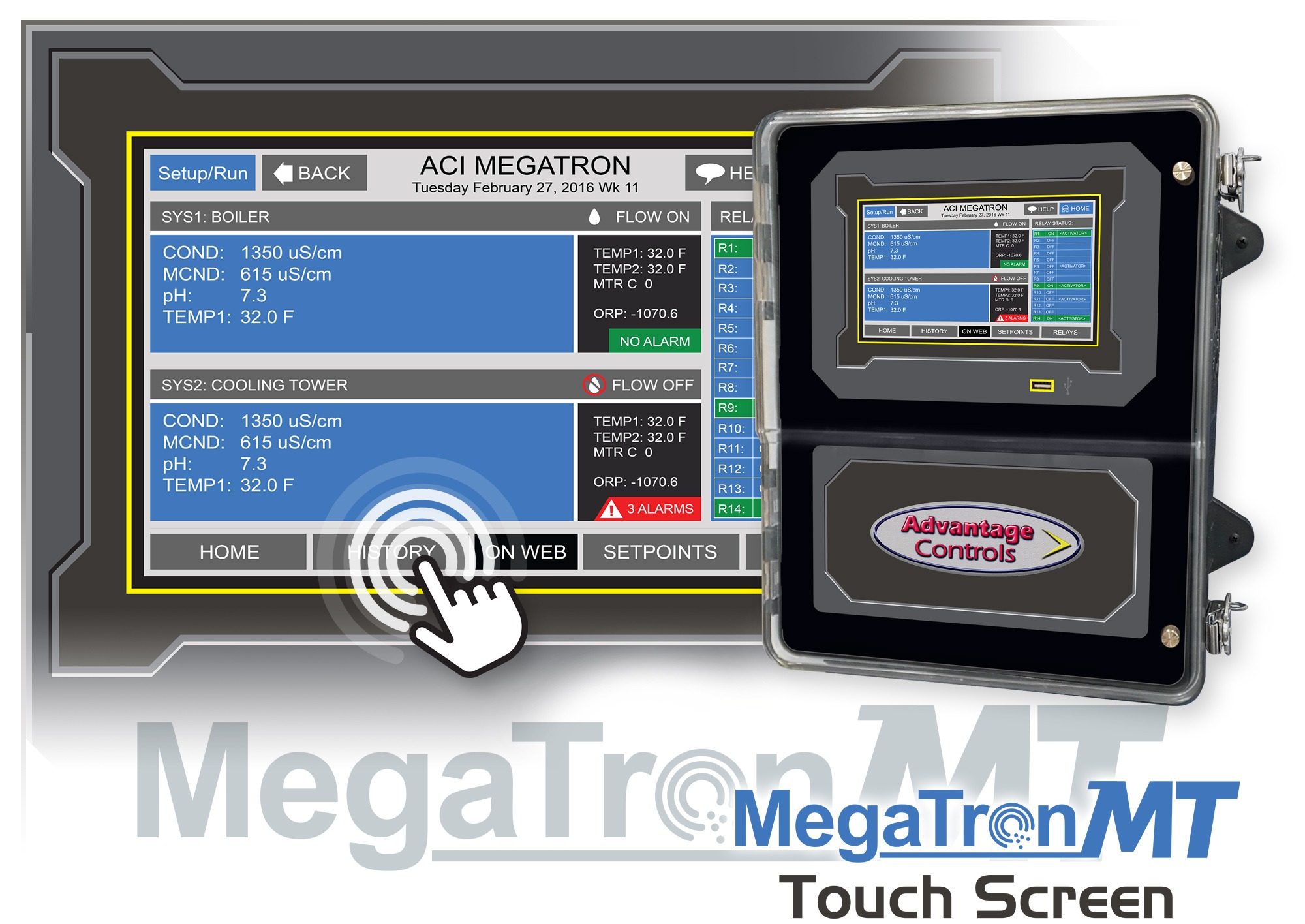

MegaTron MT
Multi-System Controller
The MegaTron MT makes continuous monitoring and control of (1-4) industrial water systems such as cooling towers, boilers and waste water easy with its large full graphic, user-friendly, touch screen display. Read full description…
Control and Monitor
| Conductivity | pH / ORP |
| Make-up Conductivity | Temperature |
| Service Reports | Sensor and Alarm History |
| Flow | PPM Feed |
| 4-20mA Inputs and Outputs | Feed Timers |
| Up to 42 Digital Inputs | Up to 20 Control Relays |
Additional Information
Description
Description
MegaTronMT makes continuous monitoring and control of industrial water systems such as cooling towers, boilers and waste water easy with its large full graphic, user-friendly, touch screen display.

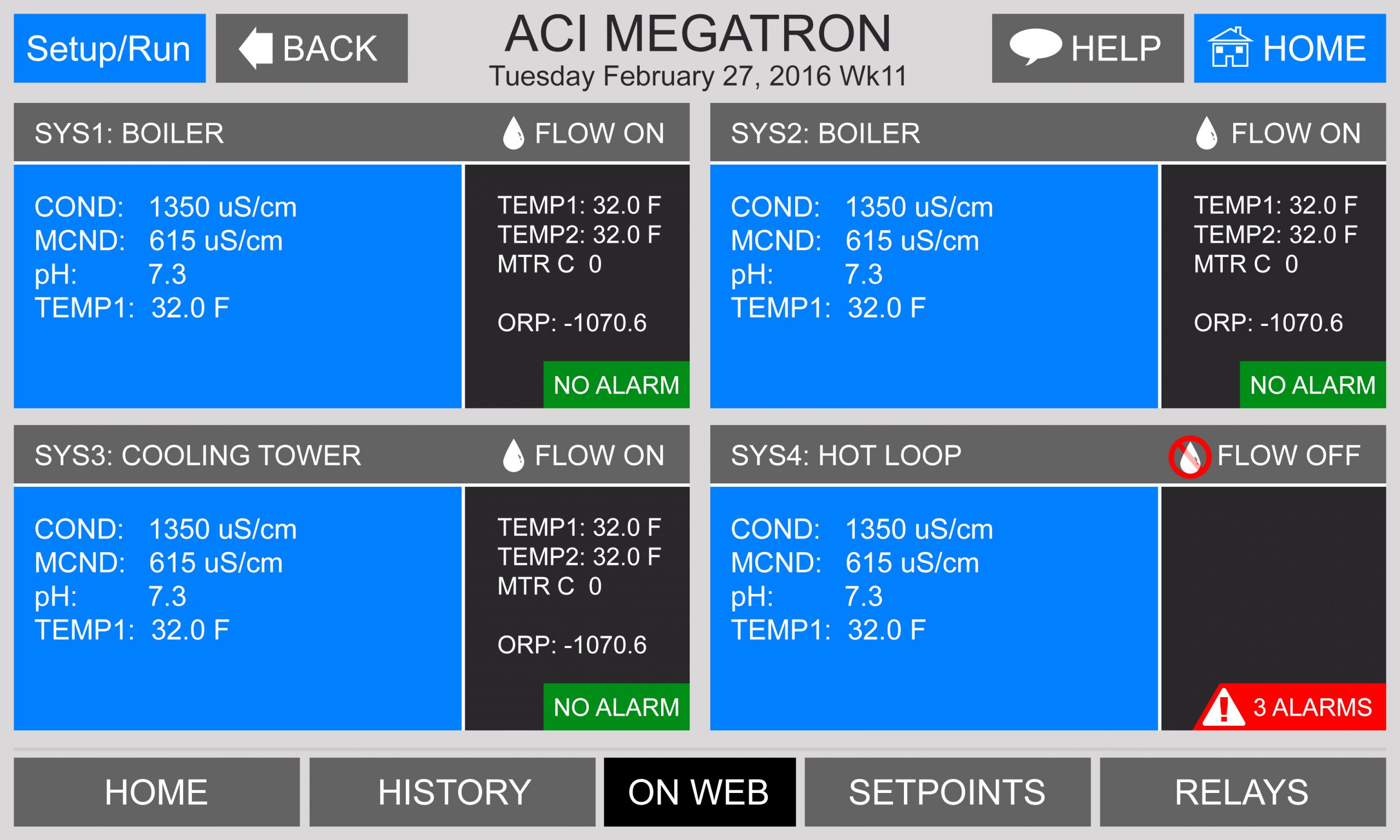

Using a simple system approach an individual MegaTronMT can control 1 to 4 systems. Each of these systems can be specifically configured with the functions your application requires.
Features:
- Control 1 to 4 Systems
- BACnet, Modbus and Lonworks communications options
- Internet Communication
- Wifi Comes Standard
- Multi-Level Security
- USB History Access
- USB Configuration Cloning

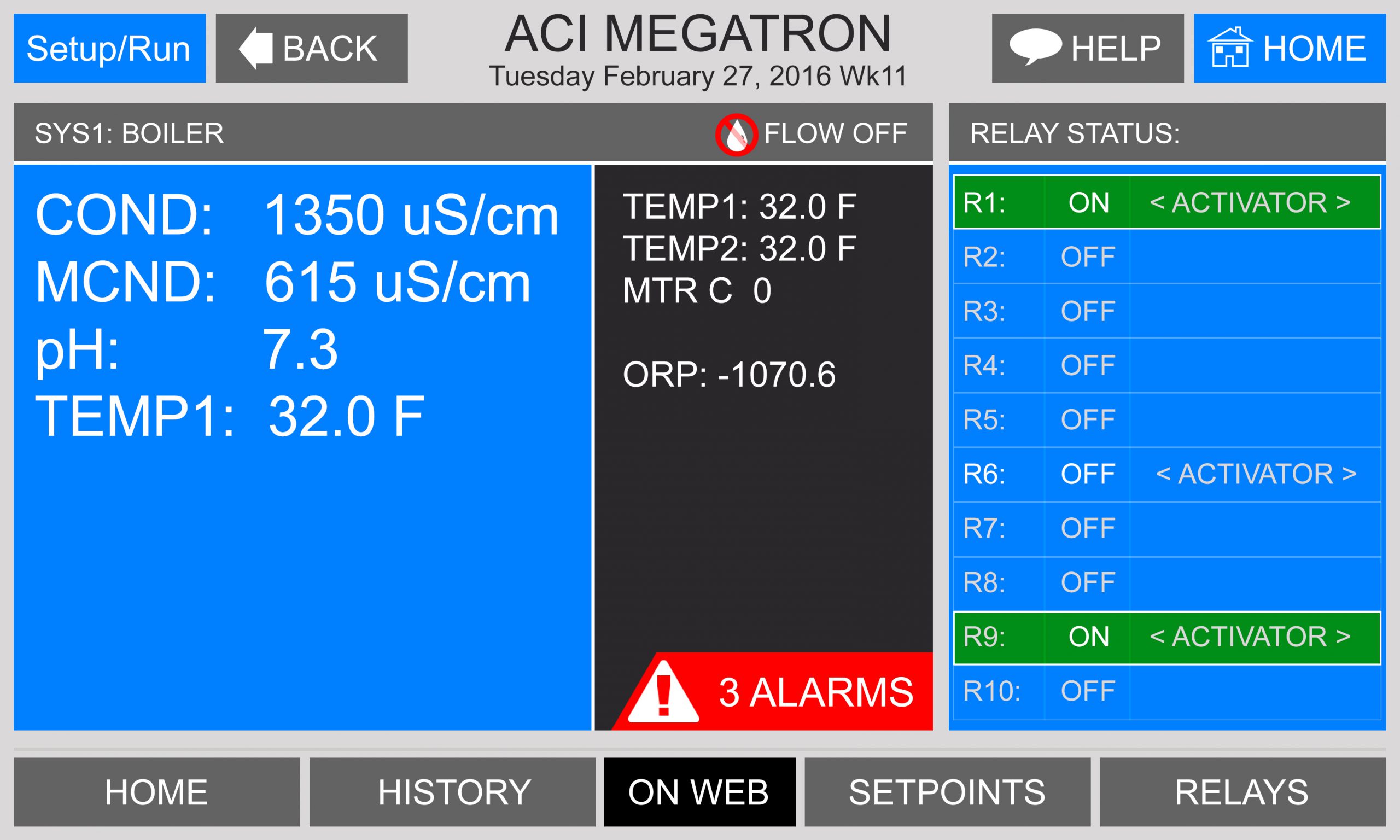

- Simple Touchscreen Style Menu

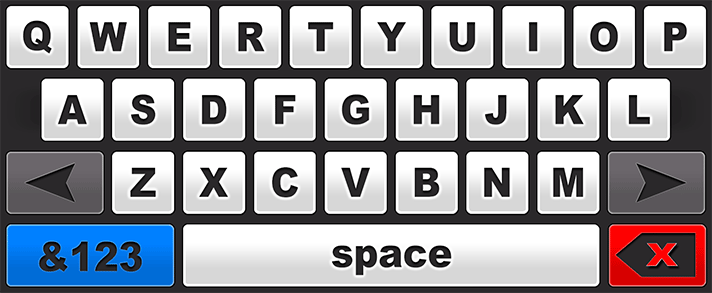

- Everything Keypad Settable

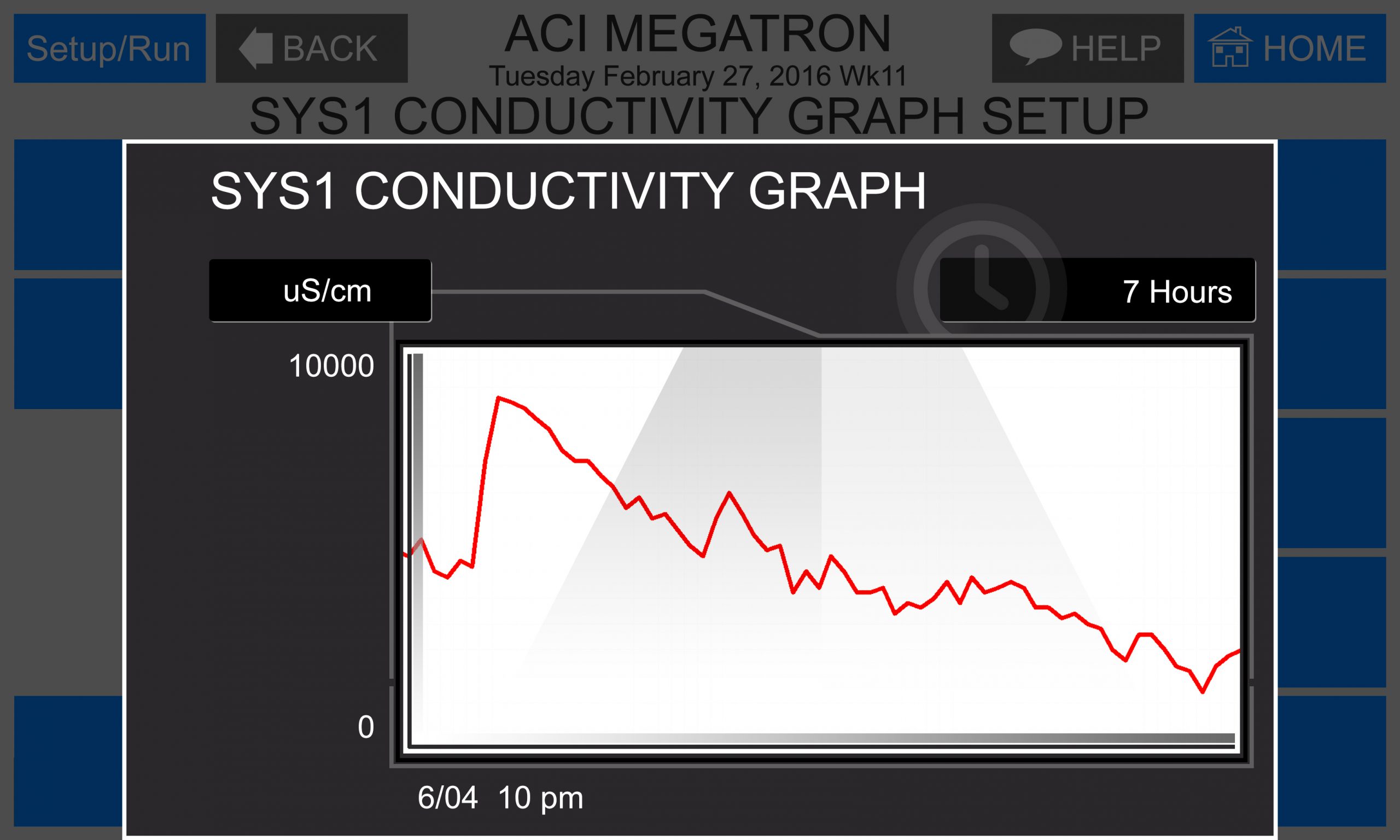

- On Screen History Graphs
- Large Customizable Display
- Locking NEMA-4X style enclosure
- Hinged thumb screw panel for easy access to internal components
- Card slots for easy field upgrades
MegaTrons Side-By-Side
 |
 |
| MegaTron XS | MegaTron MT |
| (1) system or (2) boilers | (1-4) independent systems |
| ATM style menu | Touch screen display |
| (5) control relays | (20) control relays |
| Conductivity / pH / ORP | Conductivity / pH / ORP |
| Makeup conductivity | Makeup conductivity |
| Temperature | Temperature |
| Feed & flow control / monitoring | Feed & flow control / monitoring |
| (2) water meter inputs | (8) water meter inputs |
| (8) 4-20 mA input signals | (8) 4-20 mA input signals |
| (4) 4-20 mA output signals | (8) 4-20 mA output signals |
| BACnet / MODBUS options | BACnet / MODBUS options |
| Smaller form factor | Larger, easy access cabinet |
Downloads
| Data Sheet | Manual | Quick Steps | Brochure | |
| MegaTron MT |  |
|
|
|
