LIFTX

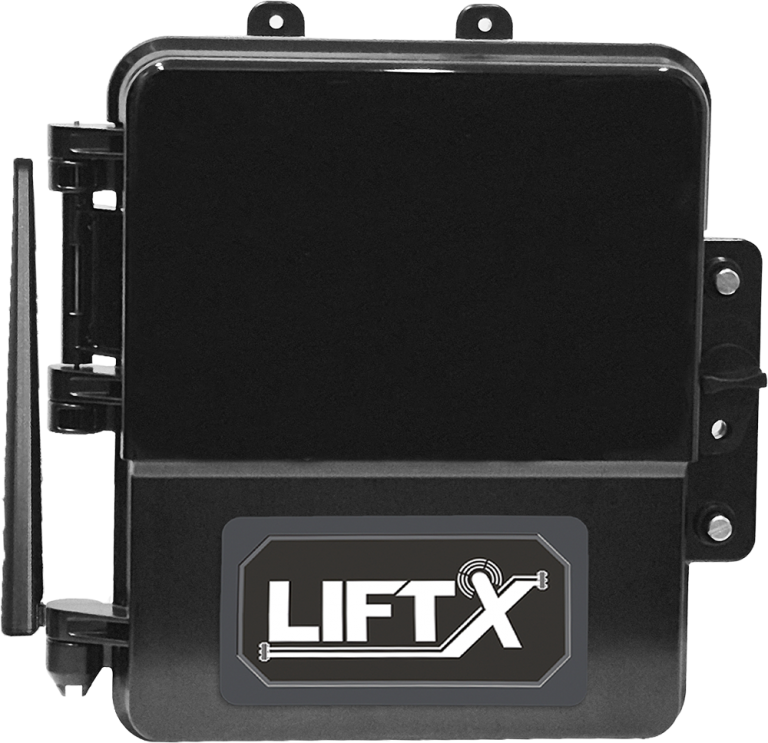

Lift Station Monitor
Remotely monitor mission-critical lift station parameters with web/cloud-based dashboards, alarms and reporting capabilities.
Read full description…
Additional Information
Description
Build a Model
Specifications
Description
Remotely monitor mission-critical lift station parameters with web/cloud-based dashboards, alarms and reporting capabilities.

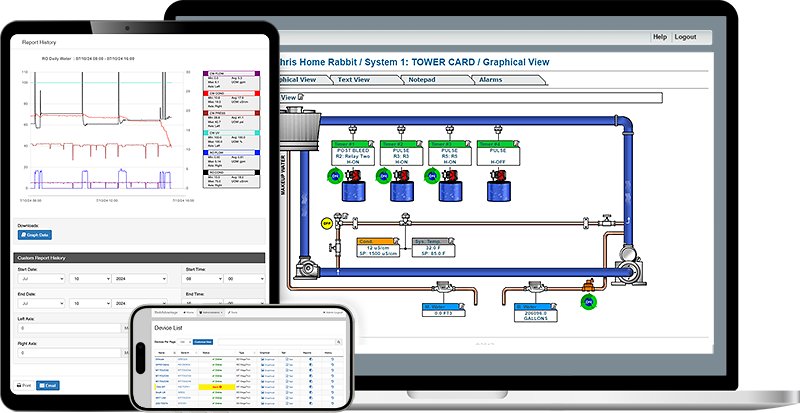

The LIFTX Lift Station Monitor saves time and fuel costs by providing real-time status and alarms for your remote lift stations. Connect sensors such as: high/low level, pressure/flow, pump statistics, generator switch-over, power outage, and even site/building security and the integrated cellular connection and WebAdvantage digital platform provides alerts/alarms, dashboard statistics, custom reporting capabilities and access to settings.
LIFTX comes complete with the first 12-months of cellular service for easy start-up and web connectivity, as well as Web Advantage for the life of the instrument.
The LIFTX Lift Station Monitor saves time and fuel costs by providing real-time status and alarms for your remote lift stations. Connect sensors such as: high/low level, pressure/flow, pump statistics, generator switch-over, power outage, and even site/building security and the integrated cellular connection and WebAdvantage digital platform provides alerts/alarms, dashboard statistics, custom reporting capabilities and access to settings.
LIFTX comes complete with the first 12-months of cellular service for easy start-up and web connectivity, as well as Web Advantage for the life of the instrument.
Features:
- 1 System or Dual Boiler Control
- USB History Access
- USB Configure Cloning

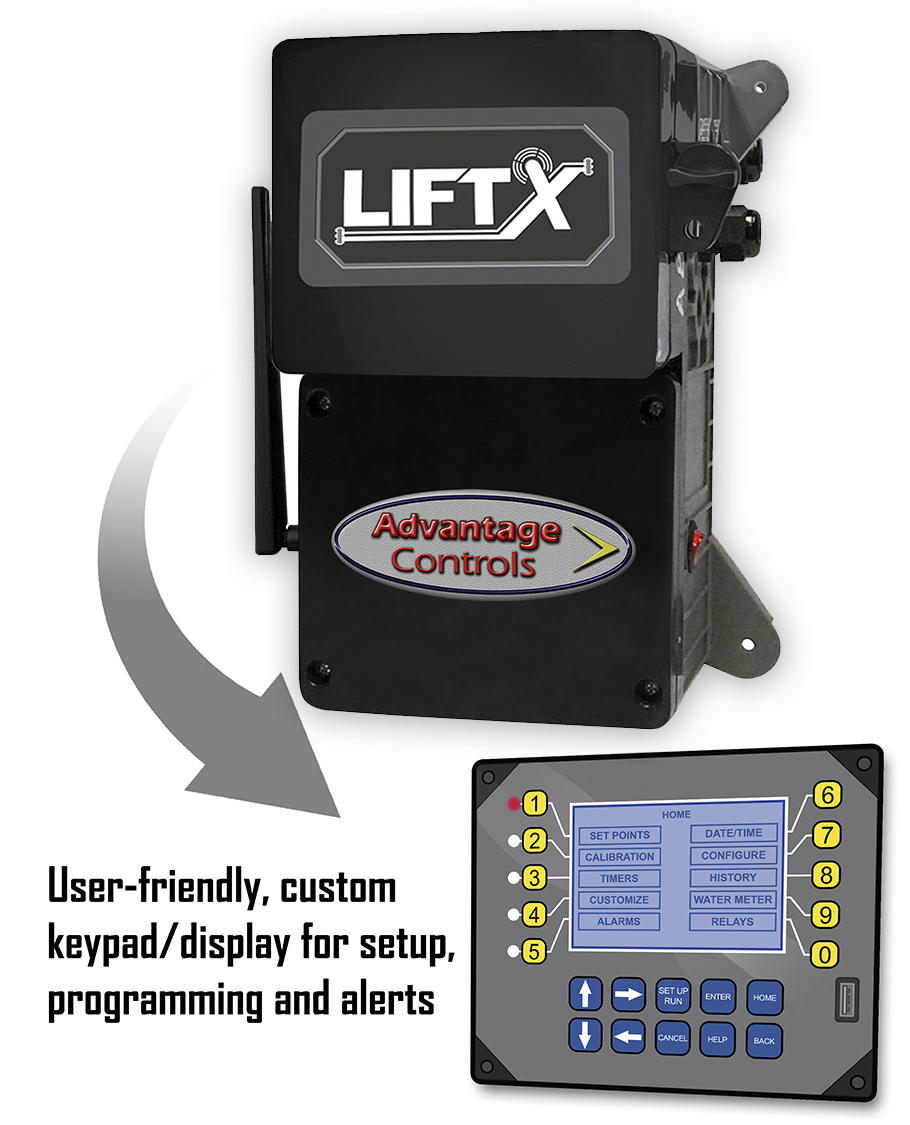

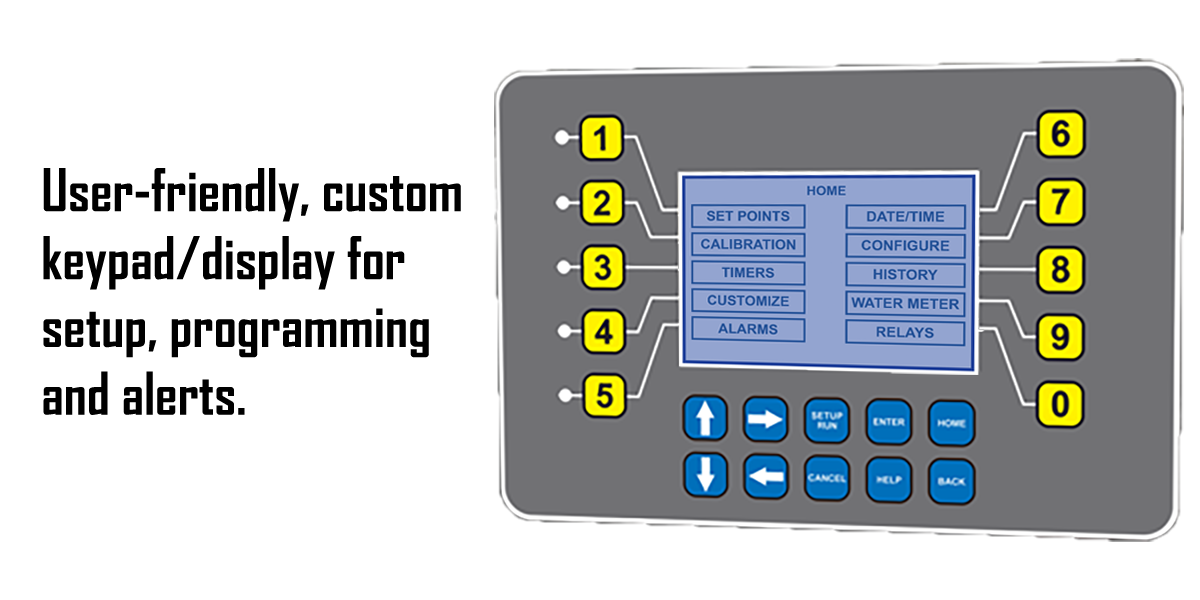

- Simple ATM Style Menu
- Everything Keypad Settable
- On Screen History Graphs
- Multi-Level Security
- Internet Communications
Build a Model
The model number starts with LIFTX followed by the desired options (Example LIFTX-N4)
Options
- A24 – 24 VDC power supply for mA inputs
- D – (5) dry contact relay output
- L – (5) additional digital alarm inputs
- N4 – (4) 4-20mA isolated inputs
- N8 – (8) 4-20mA isolated inputs (not available with option)
- O4 – (4) 4-20mA isolated outputs (not available with option)
- R – Adds 5 control relays, 120 VAC with pigtails plus an ON/OFF switch on the side of the unit, and mounts cell router in external enclosure
- S – Delayed cell service start (up to 4 months)
- S1 – AT&T™ service instead of Verizon™ (no delay start available)
- S2 – Cell router only, with no 12 months of data or SIM card
- W4 – (4) totalizing flow meter inputs with volume tracking and alarming
Specifications

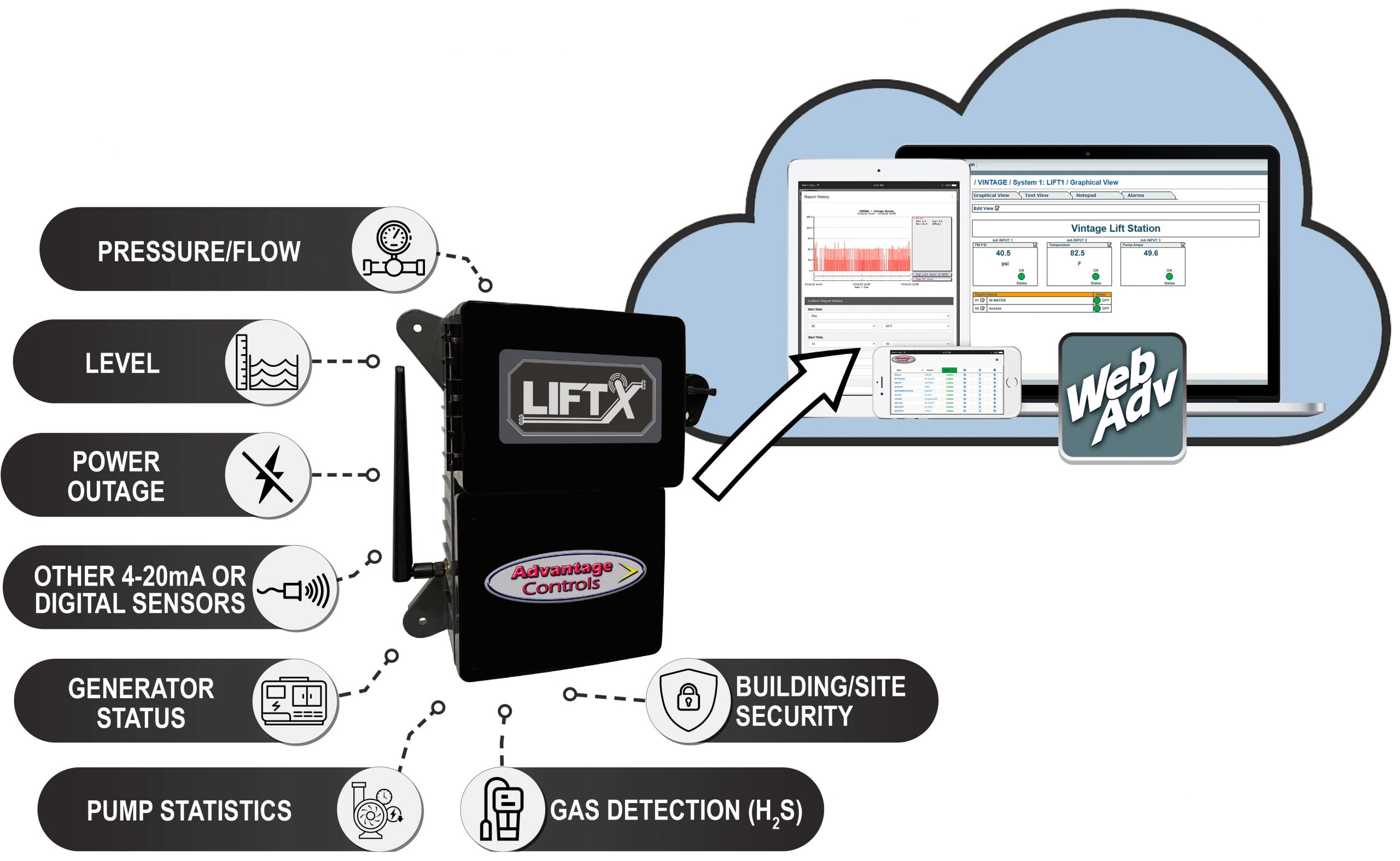

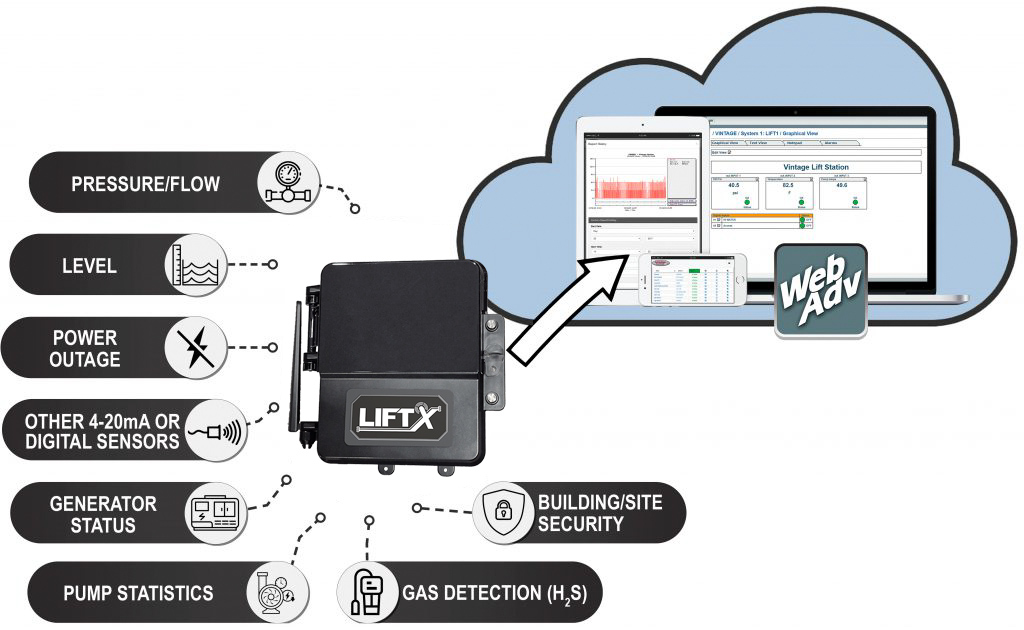

Connect commercially available sensors to provide:
- Wet well level measurements
- Pressure/flow
- Pump statistics (run-time, amp draw, etc)
- Power outages/generator switchover
- Gas detection (H2S, etc.)
- Building or gate security
- Other parameters or inputs using digital or 4-20mA inputs
- Add control functions using 4-20mA or relay options
Notes:
- Base LIFTX units have 5 digital inputs, a built-in cell router and 12 months of data.
- All units include 10 customizable notepad fields for manual reading test entry. These entries can generate alarms and are stored historically for graphing and reporting.
- All units come standard with conduit connections for incoming power.
- All required sensors must be sourced separately.
